ECO Stage MD-RGB-3 DMX AMPLIFIER

Introduction:

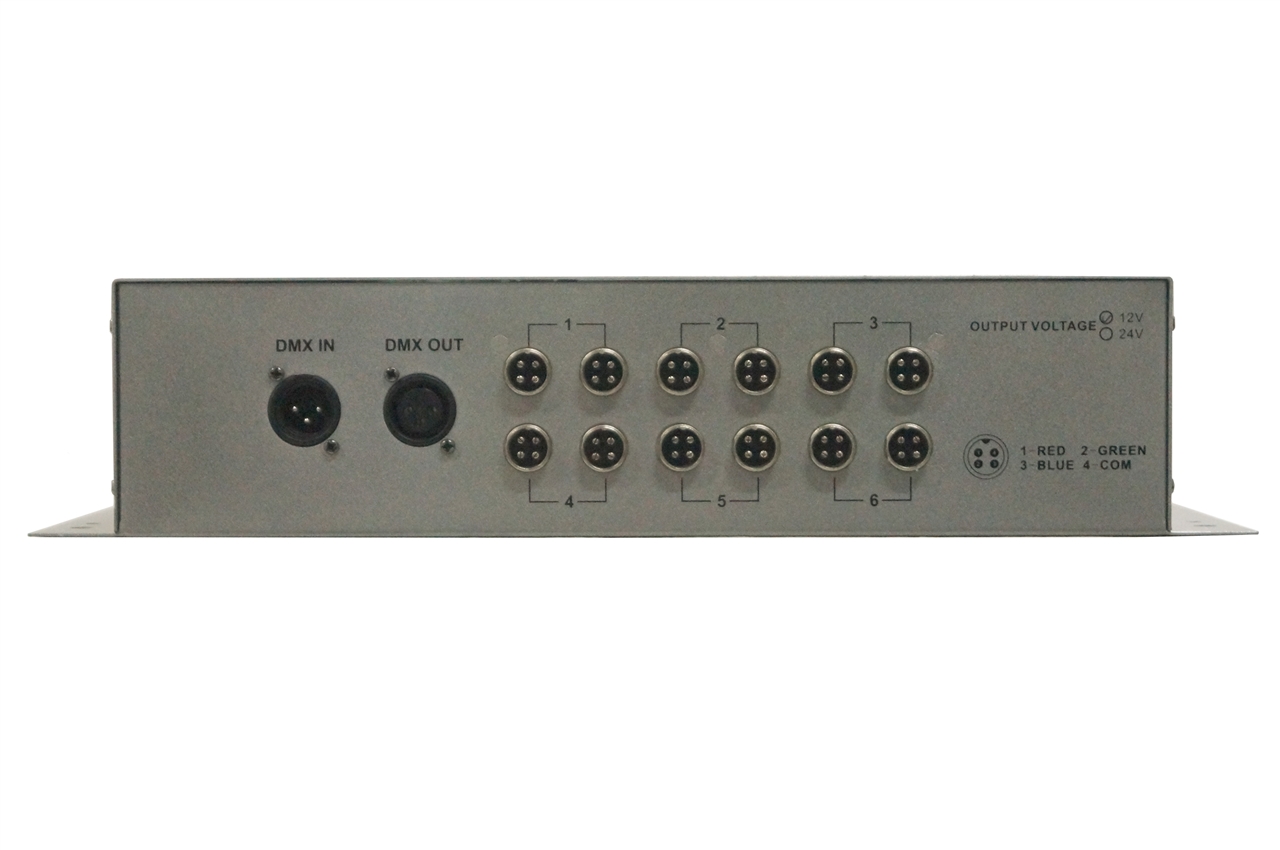

The unit is a 6 ports DMX Amplifier. Each port has 3 channel for red, green and blue.

It is easy to use on stage or disco or other entertainment place via DMX signal.

Please pay attention on each output to control the current.

Technique Data:

Power input.................................................AC 180-230V / 50 - 60Hz.

Out put.......................................................5A 12V Max / per Ch. Total: 30A

2.5A 24V Max / per Ch. Total: 15A

DMX input...................................................3pin XLR male socket DMX

DMX output.................................................3pin XLR female socket DMX

Dimension...................................................405x190x85mm.

Weight........................................................3.46kg.
