LDC-120

LDC-120 PROGRAMMABLE LED CONTROLLER

TECHNICAL SPECIFICATIONS:

Power supply: 220-240V AC 50/60 Hz, 0.54A（max）

DMX-control-channels: 6 DMX-512-connection: 3-pin XLR

Dimensions: 266*44*200mm

Weight:1.73 kgs

Maximum Output: 5A ---24V; 10A--- 12V; 17A--- 7V;

STRUCTURE:

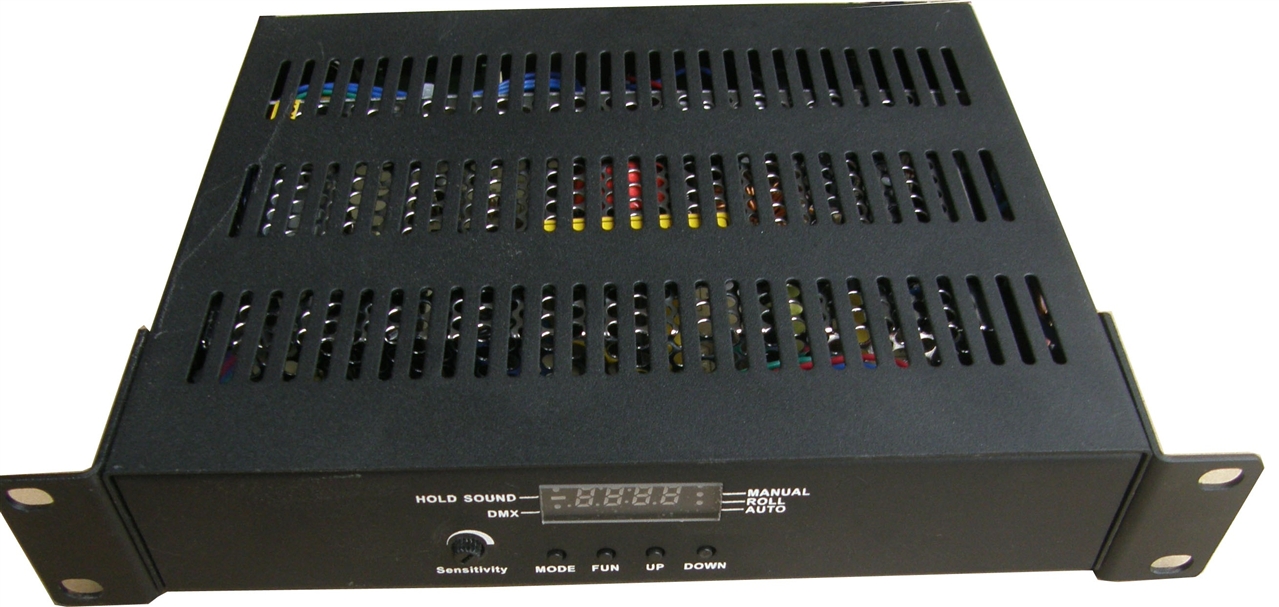

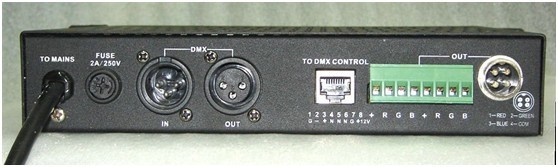

1：“Four-digital LED display”  2：“SENSITIVITY” 3：“MODE”  4：“FUN ” 5：“UP”  6: “DOWN ”   7：OUTPUT 8: OUT PUT IN TERMINAL BLOCK 9: RJ45 FOR REMOTE CONTROLLER 10: DMX OUT   11: DMX IN 12: FUSE 13: TO MAINS

 Operation：

1) Push mode to select DMX or PROGRAM or MANUAL

2) Enter DMX MODE, you can use UP or DOWN to select DMX start address from 1 to 512.

Note: this unit can accept 36 channels. Each part will use 3 channels for R G and B.

3) Enter PROGRAM MODE, you can use UP or DOWN to select P1 to P3,

Then you can use FUNC to select Speed and fade time.

Speed time: 1-100—10sec-0.1sec, 1 slaw 100 fast Running.

Fade time: 0-100—0- 5 sec, 0 no fade 100 max fade.

4) Enter MANUAL MODE, you can use UP or DOWN to select CH1 to CH12.

Note: CH1 means part 1.    CH12 means part 12.

Then you can use FUNC to select output of RED GREEN and BULE.

 !Caution:

1. This unit must be earthed.

2. To prevent fire or shock hazard, do not expose this apparatus to rain or in moisture.

3. In the unlikely case your unit may require service, Please contact our nearest dealer.

4. When you use the unit, we suggest that you will connect a circuit breaker in mains power.
