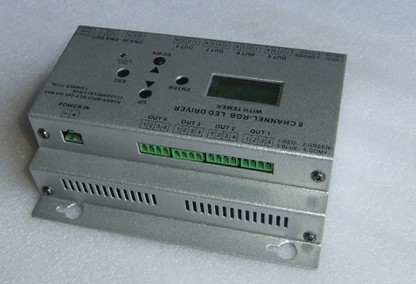

HD-725

8XPORTS (RGB) LED CONTROLLER WITH TIMER CONTROL

Introduction

There are DMX IN, PATTERN and TIMER control work mode. Each port load is 5A max. and total 24A.

It provides more DMX receive way then you can control you LED in easy way.

1.    24 DMX channels.

2.    25 DMX channels and the 25th is master control

3. 3 DMX channels.

4. 4 DMX channels and the 4th is master control

5. 8 DMX channels which is corresponding to 8 ports.

6. 9 DMX channels. Same as above but the 9th is master.

7. 1 DMX channels which will control all.

PATTER MODE:

P1-P15 is patterns you can control speed and fade.

P16 is total of P1-P15. Each pattern will be run 8 times.

Also you can select to run in auto or sound active.

P17-P25 is fix color control.

TIMER MODE:

You can set up which pattern will run in your time. There are 8 time point control.

Size: 160x 135 x51(mm)

Weight：0.62kg
