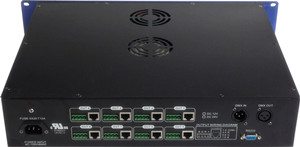

HD-730

PRODUCT INTRODUCTION:

  Compact 8 groups of 24 Channel DMX LED power pack.

  DMX-512 and RS-232 control.

  Linear/sine curve/cosine curve/EXP curve/Log curve/

   Square curve and switch control.

  1/3/4/8/24/2548 DMX Channel mode.

  Memory running when control signal ruin.

TECHNIQUE DATA:

  Power input: AC 120V/60Hz or 230V/50Hz 700W

  DMX IN and through: 3PIN XLR

  Load capacity: 1.25A per Channel

  RS-232 interface: DB-9

  Output connection: RJ45+4 pin removable terminal block

  Dimension: 482X400X88mm

  Weight: 5.3kg
