HD-733

 INTRODUCTION:

 *You also can use it by manual. It has master control and individual control for each channel.
 *You can control each channel by signal control (DMX or RS-232) or manual in the mean time.
 Output of each channel will be controlled by the maximum value of signal or manual control value.


   SPECIFICATION:

  Power input:  AC230V~50Hz. 400W,
    Power output:  DC24V, 14.5A
  Channel output: max. 5A

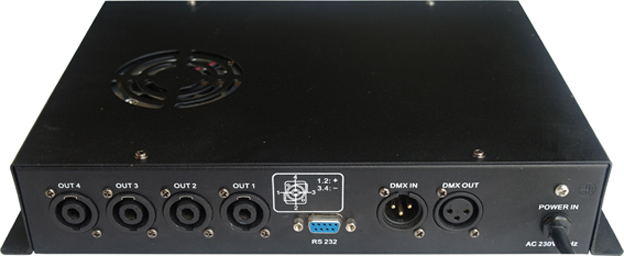

  Output interface: SPEAKON jack
    DMX interface: 3pin XLR
    RS-232 interface: DB-9
    Dimensions: 328x210x56mm
  Weight: 2.5 kg


OPERATION:

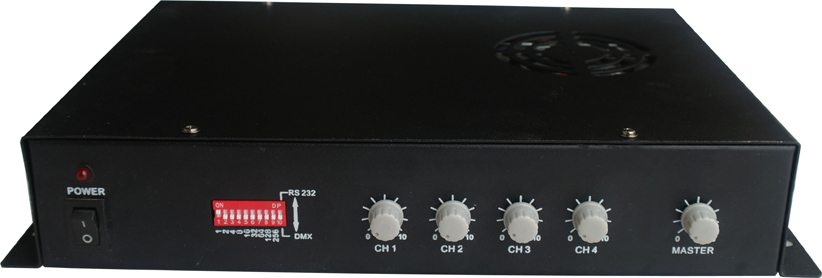

  Manual control:
   After connect to main power then you turn on.
    You can control each output by 4. Now master control should be in maximum.
  Note:  manual control is the first control no matter it has signal control or not.


Signal control:
     You can use BIT10 of dipswitch to select DMX control or RS-232 control.
     DMX control:  you can use bit 1 to 9 of dipswitch to define start DMX address:
     RS-232 control:  you can select different control way:
       RS232 Command:  Baud Rate:38400
